High Pressure Needle Valve 60000 psi

High Pressure Needle Valve- 60,000 psi

Introduction

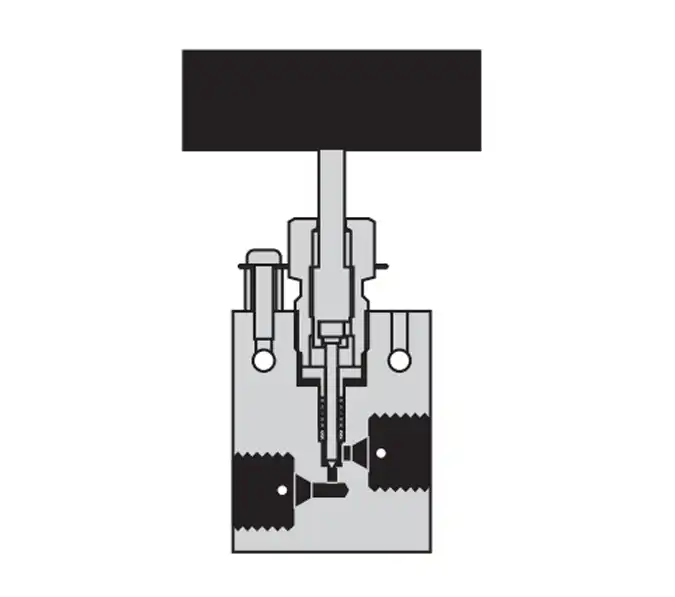

High Pressure Needle Valve rated up to 60,000 psi are precision-engineered valves designed to control and regulate fluid flow in high-pressure systems. These valves are widely used in industries requiring safe and efficient handling of extreme pressure conditions. The design features a slender, tapered needle-like plunger that fits into a matching seat, enabling fine adjustments to flow and providing a reliable seal when fully closed.

Constructed from robust materials such as stainless steel, these valves are engineered to withstand extreme conditions, including high pressures, temperatures, and corrosive environments. Their compact size, precise flow control, and high-pressure tolerance make them indispensable in critical applications.

High Pressure Needle Valves- 40,000 psi

High Pressure (coned & threaded) ttype connections for 1 /8 “, 1 /4 “, 3 /8 “, 9 /16″ and 1” O.D. tubing

Non-rotating tip stems are standard for on-off service and ensure long life on valve seats. Regulating tip stems are available for all valves at no additional cost, add – REG to part number.

Glands and collars for tubing are supplied with each valve unless otherwise requested.

Materials include high tensile type 316 stainless steel bodies and hardened 17-4PH stainless steel lower section stems.

Packing Set Consists of multiple Teflon packing with nylon back up, with optional Viton (350°F), BUNA-N (200°F) and Grafoil (800°F) available at no additional cost.

Air operators for remote control operation are available for all valves.

Extreme temperatures can be accommodated using extended stuffing boxes . These are available for all sizes except 1/8 tubing.

Valve Features

Non-rotating stem tips

●  Packing below stem threads

●  Type 316 ss high tensile bodies

●  Positive gland lock device

●  No stem adjustment needed

●  Black T-handles or choice of 4 colors

●  Tube sizes 1 /8 “through 9 /16”

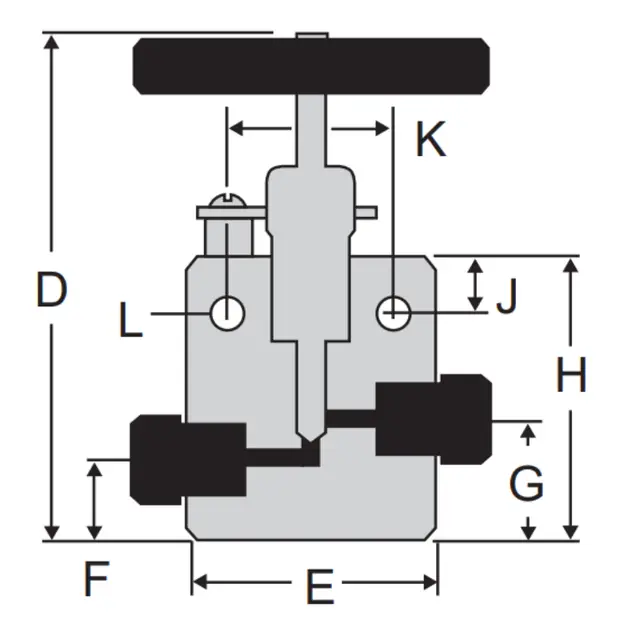

Two Way Straight Valves
Tubing PSI Connection orifice D E F G H J K L Thk PART NO.
1/8″ O.D. 60,000 HF2 1/16″ 5-3/16″ 1/2″ 5/8″ 15/16″ 2-7/16″ 1/2″ 1-3/8″ 7/32″ 1″ HPNV-60K-2T
1/4″ O.D. 60,000 HF4 1/16″ 5-3/16″ 2″ 5/8″ 1″ 2-7/16″ 1/2″ 1-3/8″ 7/32″ 1″ HPNV-60K-4T
3/8″ O.D. 60,000 HF6 1/16″ 5-3/16″ 2″ 5/8″ 1″ 2-7/16″ 1/2″ 1-3/8″ 7/32″ 1″ HPNV-60K-6T
9/16″ O.D. 60,000 HF9 1/16″ 5-5/8″ 2-5/8″ 1″ 1-7/16″ 2-7/8″ 1/2″ 1-3/8″ 7/32″ 1-1/2″ HPNV-60K-9T
Dimensions are for reference only and are subject to change.

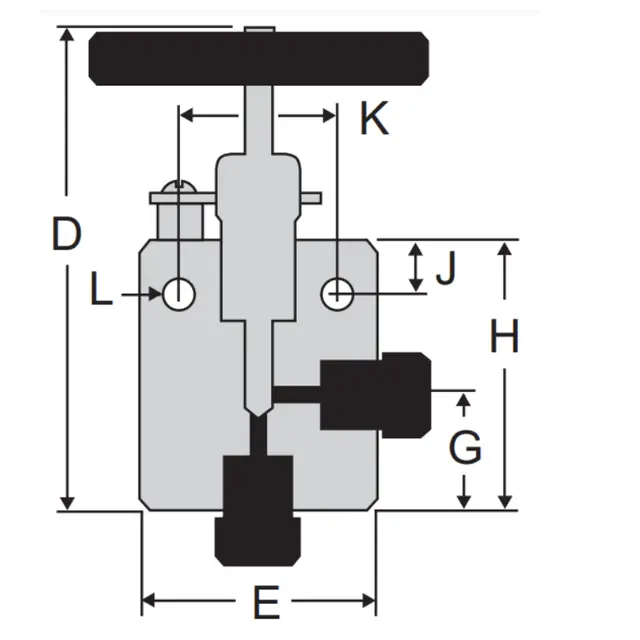

Two Way Angle Valves
TubingPSIConnectionorificeDEFGHJKLThkPART NO.
1/8″ O.D.60,000HF21/16″5-3/16″2″–1″2-7/16″1/2″1-3/8″7/32″1″HPANV-60K-2T
1/4″ O.D.60,000HF41/16″5-3/16″2″–1″2-7/16″1/2″1-3/8″7/32″1″HPANV-60K-4T
3/8″ O.D.60,000HF61/16″5-3/8″2″–1-3/8″2-13/16″1/2″1-3/8″7/32″1″HPANV-60K-6T
9/16″ O.D.60,000HF91/16″5-5/8″2-5/8″–1-7/16″2-7/8″1/2″1-3/8″7/32″1-1/2″HPANV-60K-9T
Dimensions are for reference only and are subject to change.

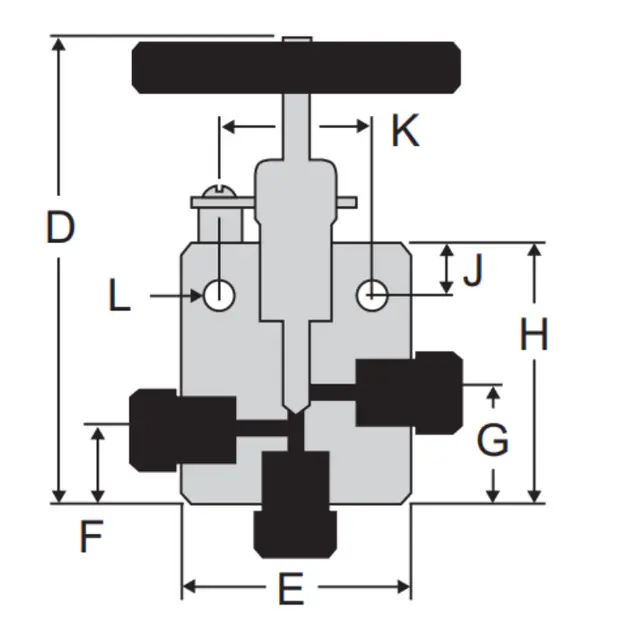

Three Way Valves / Two Pressure Connections
TubingPSIConnectionorificeDEFGHJKLThkPART NO.
1/8″ O.D.60,000HF21/16″5-3/16″2″5/8″1″2-7/16″1/2″1-3/8″7/32″1″HP3NV2-60K-2T
1/4″ O.D.60,000HF41/16″5-3/16″2″5/8″1″2-7/16″1/2″1-3/8″7/32″1″HP3NV2-60K-4T
3/8″ O.D.60,000HF61/16″5-9/16″2″5/8″1-3/8″2-13/16″1/2″1-3/8″7/32″1″HP3NV2-60K-6T
9/16″ O.D.60,000HF91/16″6-1/16″2-5/8″1-7/16″1-7/8″3-5/16″1/2″1-3/8″7/32″1-1/2″HP3NV2-60K-9T
Dimensions are for reference only and are subject to change.

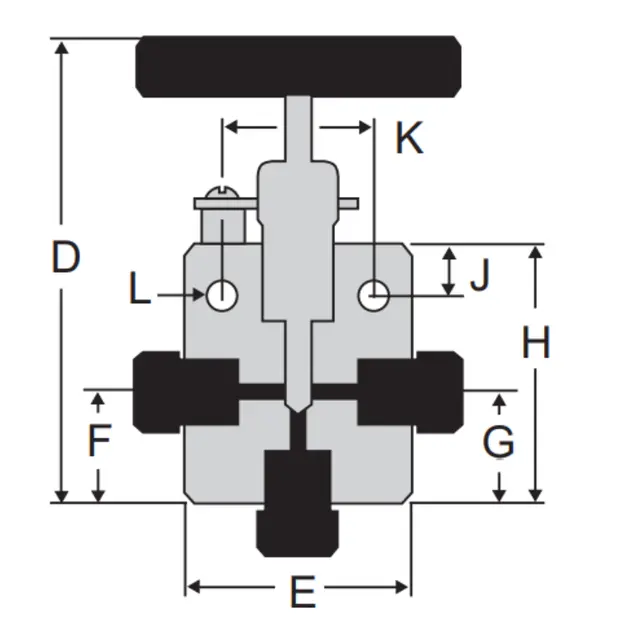

Three Way Valves / One Pressure Connections
TubingPSIConnectionorificeDEFGHJKLThkPART NO.
1/8″ O.D.60,000HF21/16″5-3/16″2″7/8″1/2″2-7/16″1/2″1-3/8″7/32″1″HP3NV1-60K-2T
1/4″ O.D.60,000HF41/16″5-3/16″2″1″1″2-7/16″1/2″1-3/8″7/32″1″HP3NV1-60K-4T
3/8″ O.D.60,000HF61/16″5-9/16″2″1-3/8″1-3/8″2-13/16″1/2″1-3/8″7/32″1″HP3NV1-60K-6T
9/16″ O.D.60,000HF91/16″6-1/16″2-5/8″1-7/16″1-7/16″2-7/8″1/2″1-3/8″7/32″1-1/2″HP3NV1-60K-9T
Dimensions are for reference only and are subject to change.

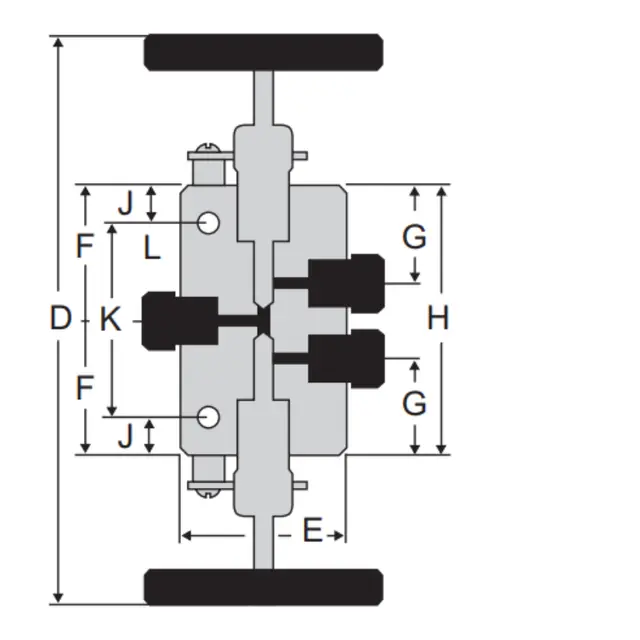

Three Way / Two Stem Connections Valves
TubingPSIConnectionorificeDEFGHJKLThkPART NO.
1/8″ O.D.60,000HF21/16″9-1/4″2″1-7/8″1-7/16″3-3/4″1/2″2-3/4″7/64″1″HP32NV-60K-2T
1/4″ O.D.60,000HF41/16″9-1/4″2″1-7/8″1-7/16″3-3/4″1/2″2-3/4″7/32″1″HP32NV-60K-4T
3/8″ O.D.60,000HF61/16″9-1/2″2″2″1-7/16″4″1/2″3″7/32″1″HP32NV-60K-6T
9/16″ O.D.60,000HF91/16″9-7/8″2-5/8″2-3/16″1-7/16″4-3/8″1/2″3-3/8″7/32″1-1/2″HP32NV-60K-9T
Dimensions are for reference only and are subject to change.

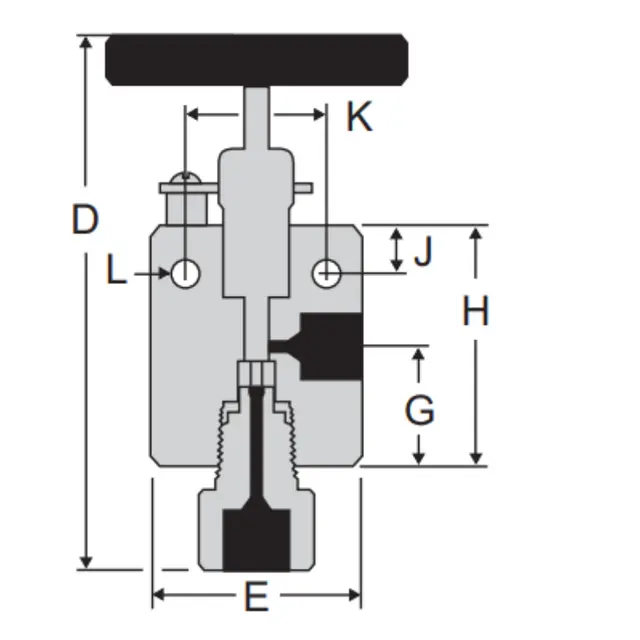

Replaceable Seat Valves
TubingPSIConnectionorificeDEFGHJKLThkPART NO.
1/4″ O.D.60,000HF41/16″6″2″–1″2-7/16″1/2″1-3/8″7/32″1″HPNVR-60K-4T
3/8″ O.D.60,000HF61/16″6-5/8″2″–1-3/8″2-13/16″1/2″1-3/8″7/32″1″HPNVR-60K-6T
9/16″ O.D.60,000HF91/16″6-13/16″2-5/8″–1-7/16″2-7/8″1/2″1-3/8″7/32″1-1/2″HPNVR-60K-9T
Dimensions are for reference only and are subject to change.
